VGI SSF 16L
Why use VGI SSF 16L
The VGI SSF 16L is a compact yet powerful agricultural drone designed for efficient pest control and crop management. With a 12-liter payload capacity and a spraying width of up to 7 meters, it is well-suited for medium-sized farms seeking precision and cost efficiency. Its lightweight design (24.9 kg maximum takeoff weight) allows for quick deployment and maneuverability, while advanced features such as automatic altitude hold, spray adjustment, and return-to-home ensure safe and accurate operations. Ideal for daily operations, the SSF 16L can cover up to 198 acres per day, making it a reliable solution for modern smart farming.
Features
- Dimensions: Width 1810mm × 490mm
- Maximum Takeoff Weight: 24.9 kg
- Flight Time: 15 minutes (Agricultural use) ~ 30 minutes (Industrial use)
- 6-axis: Hexacopter
- Power System per Flight: 12s 16,000mAh × 1
- Payload Capacity per Flight: 12L (pesticide/granule), spraying width 4~7m
- Spray Coverage per Flight: 3,000 pyeong (~9.9 acres / 33,000 m²)
- Spray Coverage per Day: 60,000 pyeong (~198 acres / 198,000 m²)
- Automatic Pest Control
- Automatic Altitude Hold
- Automatic Spray Adjustment
- Automatic Return & Fail-safe
- Multifunctional Multi-drone
- Agricultural Drone – PPS MAS Contract Product
Specification
| ITEM | SPECIFICATION |
|---|---|
| Size (Working) | L1810mm × W1810mm × H495mm |
| Size (Collapsed) | L890mm × W800mm × H495mm |
| Weight | 14.3 kg |
| Weight/Take-off | 30.3 kg (MAX) |
| Payload | 16 L (MAX) |
| Operating distance | 500 m (MAX, Software locked) |
| Operating height | 20 m (MAX, Software locked) |
| Operating frequency | 2.4 GHz |
| Safety function | Automatic landing when battery low |
| Tank capacity | 16 L |
| Nozzle distance | 1,410 mm |

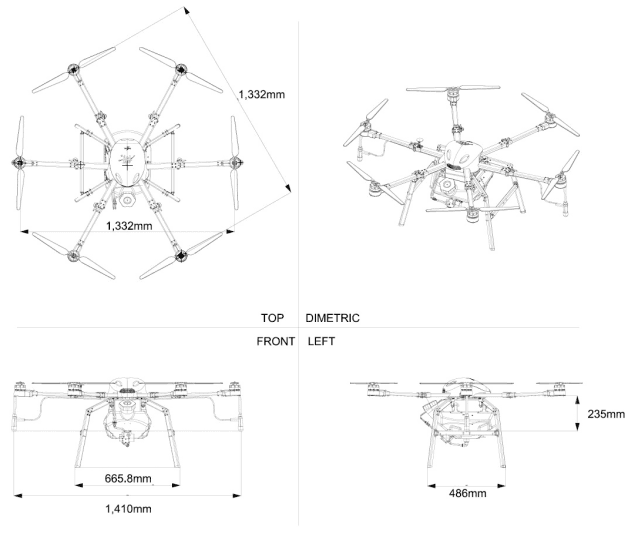

Drawing
