VGI SSF 20L
Why use VGI SSF 20L
The VGI SSF 20L is a versatile agricultural drone built for both efficiency and durability. Featuring an octocopter design for improved stability, it can carry up to 20 liters of pesticide or fertilizer per flight and achieve up to 40 minutes of flight time in industrial applications. Covering nearly 400 acres per day, the SSF 20L is optimized for large-scale farming operations. Its smart automation systems, including altitude hold, spray control, and fail-safe return, reduce operator workload and increase spraying accuracy. Recognized as an Excellent Product by the Public Procurement Service (PPS), the SSF 20L is trusted for government and commercial agricultural projects.
Features
- Dimensions: Width 1910mm × 650mm
- Maximum Takeoff Weight: 48 kg
- Flight Time: 15 minutes (Agricultural use) ~ 40 minutes (Industrial use)
- 8-axis: Octocopter
- Power System per Flight: 12s 16,000mAh × 2
- Payload Capacity per Flight: 20L (spraying width 5~7m)
- Spray Coverage per Flight: 6,000 pyeong (~19.8 acres / 66,000 m²)
- Spray Coverage per Day: 120,000 pyeong (~396 acres / 396,000 m²)
- Automatic Pest Control
- Automatic Altitude Hold
- Automatic Spray Adjustment
- Automatic Return & Fail-safe
- Multifunctional Multi-drone
- Designated Excellent Product by the Public
- Procurement Service (PPS)
Specification
| ITEM | SPECIFICATION |
|---|---|
| Size (Working) | L2320mm × W2320mm × H638mm |
| Size (Collapsed) | L720mm × W720mm × H638mm |
| Weight | 30.2 kg |
| Weight/Take-off | 50.2 kg (MAX) |
| Payload | 20 L (MAX 21L) |
| Operating distance | 500 m (MAX, Software locked) |
| Operating height | 20 m (MAX, Software locked) |
| Operating frequency | 2.4 GHz |
| Safety function | Automatic landing when battery low |
| Tank capacity | 21 L |
| Nozzle distance | 1,790 mm |

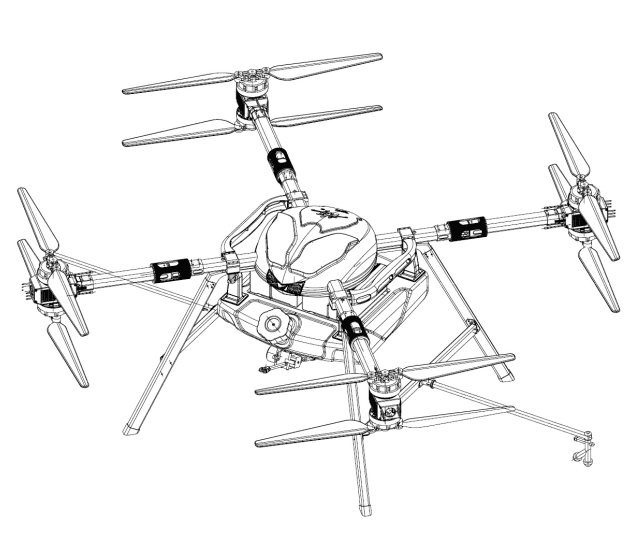

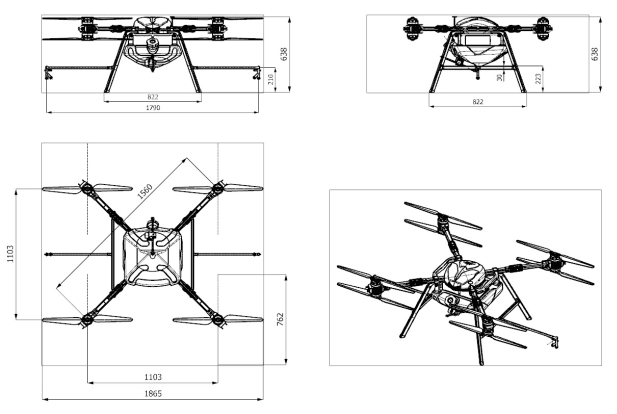

Drawing
