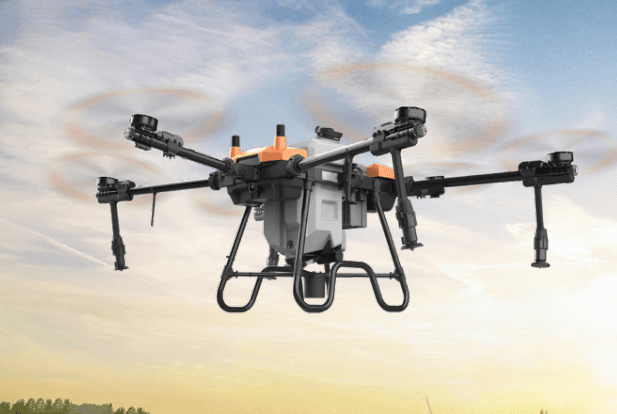

VGI SSF 40L
Why use VGI SSF 40L
The VGI SSF 40L is a heavy-duty agricultural drone engineered for large-scale and high-demand farming applications. With a maximum payload capacity of 40 liters for liquid spraying and 60 liters for granules, it delivers unparalleled efficiency in crop protection and soil treatment. Its advanced navigation system, featuring RTK positioning and omni-directional obstacle avoidance, ensures high-precision operation even in complex terrains. The dual cameras (front and rear) enhance operator visibility, improving safety and monitoring during flights. Released in 2023, the SSF 40L is the latest flagship model in the VGI series, capable of covering up to 495 acres per day. This makes it the ultimate choice for professional agricultural enterprises seeking robust performance and cutting-edge smart farming technology.
Features
- Dimensions: Width 3050mm × 830mm
- Maximum Takeoff Weight: 80 kg
- Flight Time: 20 minutes
- 6-axis: Hexacopter
- Power System per Flight: 18s 30,000mAh × 1
- Payload Capacity per Flight: 40L (spraying width 5~7m)
- Spray Coverage per Flight: 10,000 pyeong (~33 acres / 33 ha)
- Spray Coverage per Day: 150,000 pyeong (~495 acres / 495 ha)
- Granule Capacity: 60L / 40kg
- New Model Released in 2023
- Omni-directional Obstacle Avoidance Sensors
- RTK Positioning Control Technology
- Front and Rear Cameras
- Heavy-duty Agricultural Drone
Specification
| ITEM | SPECIFICATION |
|---|---|
| Size (Working) | L2320mm × W2320mm × H638mm |
| Size (Collapsed) | L720mm × W720mm × H638mm |
| Weight | 30.2 kg |
| Weight/Take-off | 50.2 kg (MAX) |
| Payload | 20 L (MAX 21L) |
| Operating distance | 500 m (MAX, Software locked) |
| Operating height | 20 m (MAX, Software locked) |
| Operating frequency | 2.4 GHz |
| Safety function | Automatic landing when battery low |
| Tank capacity | 21 L |
| Nozzle distance | 1,790 mm |
Drawing
